Orvibo BM2 Ceiling Music Speaker - Smart Audio Solution

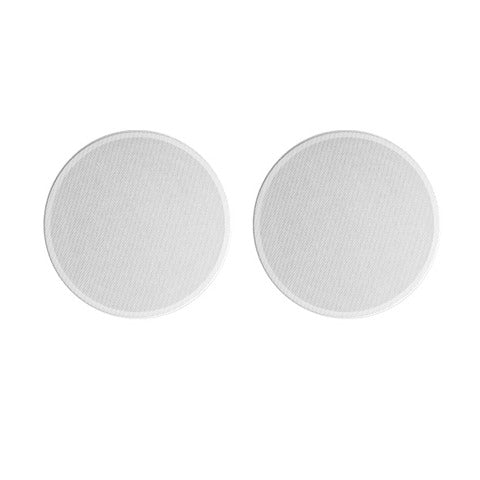

Orvibo ceiling-mounted background music speaker , Smart Ceiling Speaker

product description
The BM2 ceiling-mounted background music speaker inherits the core functions of the first generation and can be perfectly adapted to MixPad products. The innovative use of separate stereo surround physically creates a real surround sound field. Can be expanded to 4 speakers, and additional sub-speakers can be supplemented

Basic parameters
Input power: DC19V/3A
The maximum power of the whole machine: 50W (after expanding two secondary speakers)
Rated Impedance: 8Ω
Bluetooth protocol: 4.2
Appearance size: Ф200mm*105mm
Hole size: Ф185MM

Accessories Description: Adapter + Instruction Manual
Optional description: If you need to expand to 1 main speaker with 3 sub-speakers, you need to purchase 9.10.02000031 ceiling-mounted background music sub-speakers

Reserved plan
1. Power supply:
Reserve a 220v power socket for the main speaker (no obstruction within 5 meters from the mixpad);
Sub-speaker: No need to reserve a power socket, reserve audio wires (150-200 core gold and silver wires) between the main speaker and the sub-speaker
2. Hole size: diameter 185mm;
3. The minimum clearance height in the ceiling ≥ 130mm
