Orvibo SOPRO Smart Downlight S10 with Zigbee Lighting System

Orvibo SOPRO Smart Downlight S10 with Zigbee

Orvibo smart recessed, spotlight, wall washer, and smart led light. Zigbee connected with Google home, Alexa, and Apple home kit. SOPRO smart downlight S100,000-level dimming and color-adjusting lamps, with 96 product forms, can be matched with a variety of styles, and is loved by mansion designers.

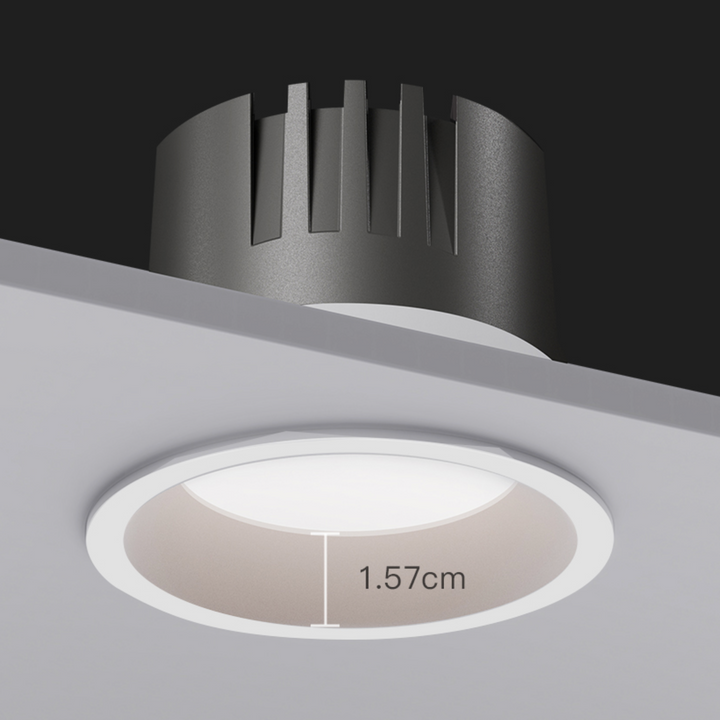

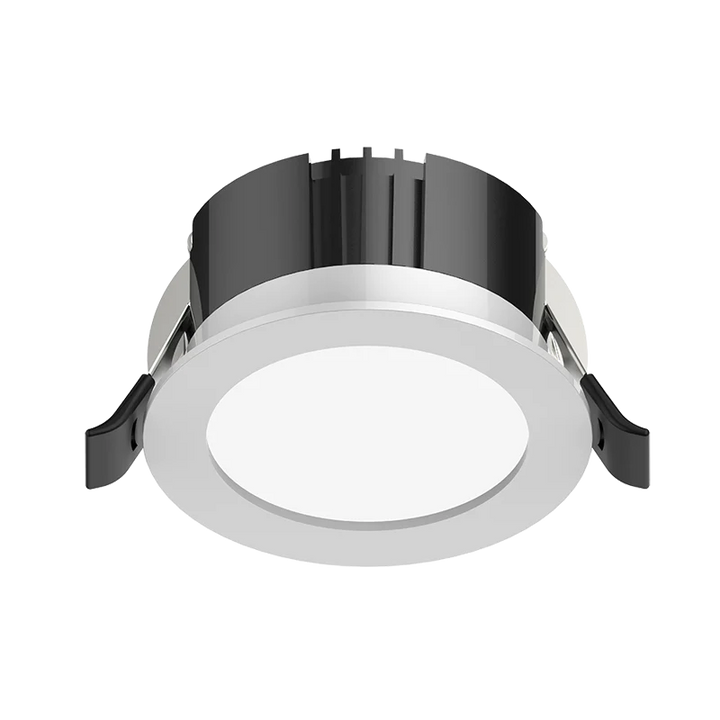

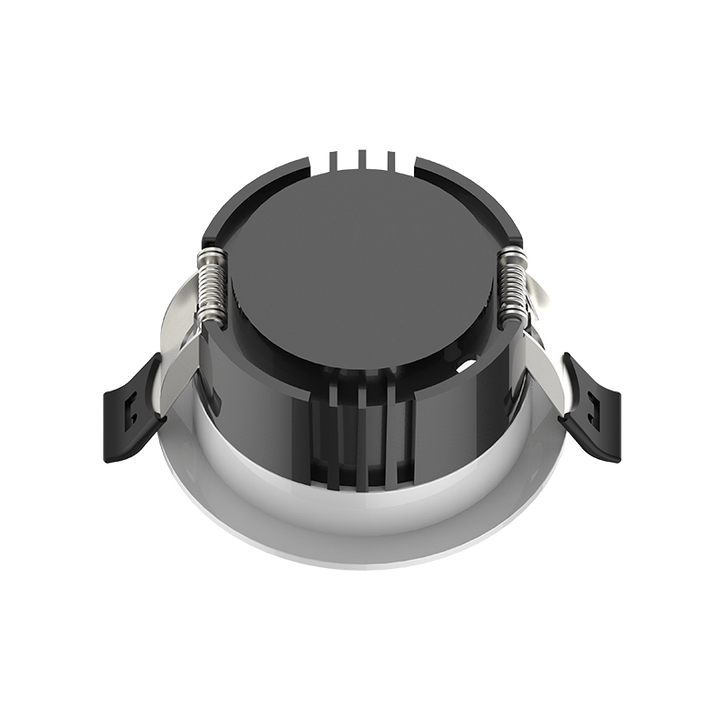

Product Specification of SOPRO Smart Downlight S10

• Wattage: 7W 12W
• Light angle: 36°
• Luminous flux: 7W 350lm, 12W 600lm
• Color rendering index: Ra90
• Color temperature range: 2700K-6000K
• Communication protocol: ZigBee
• 7W circular embedded/embedded model opening size: Φ55mm
• 7W round embedded model product size: W67*H77mm
• 12W circular embedded/embedded model opening size: Φ75mm
• 12W round embedded model product size: W85*H103mm

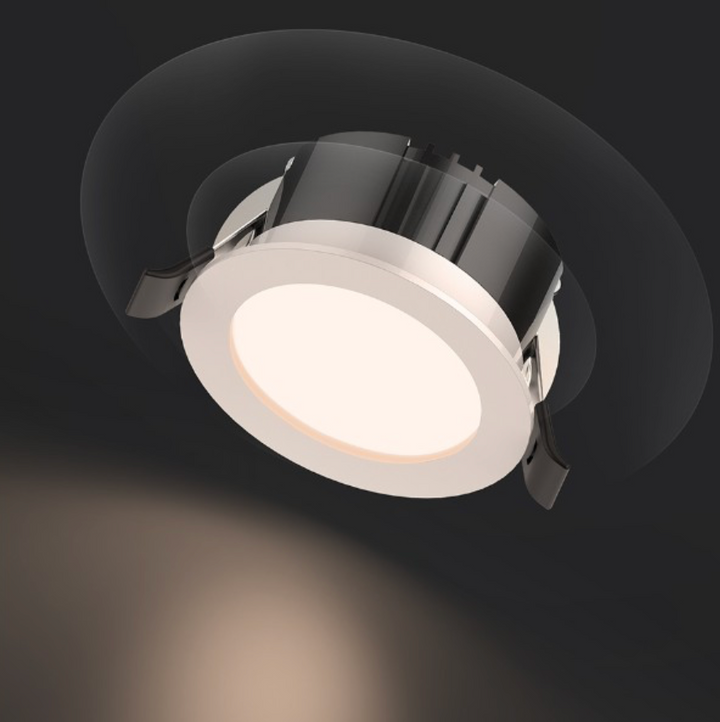

SOPRO Smart Motion Sensor Downlight (6W-4000K)

Power supply: AC220V 50Hz
Size:φ80mm x 43.5mm
Cut-out size: φ75mm
Beam Angle: 85°
Luminous flux: ≥320lm
Rated power: 6W
CRI≥90Ra
Color temperature range: 4000K

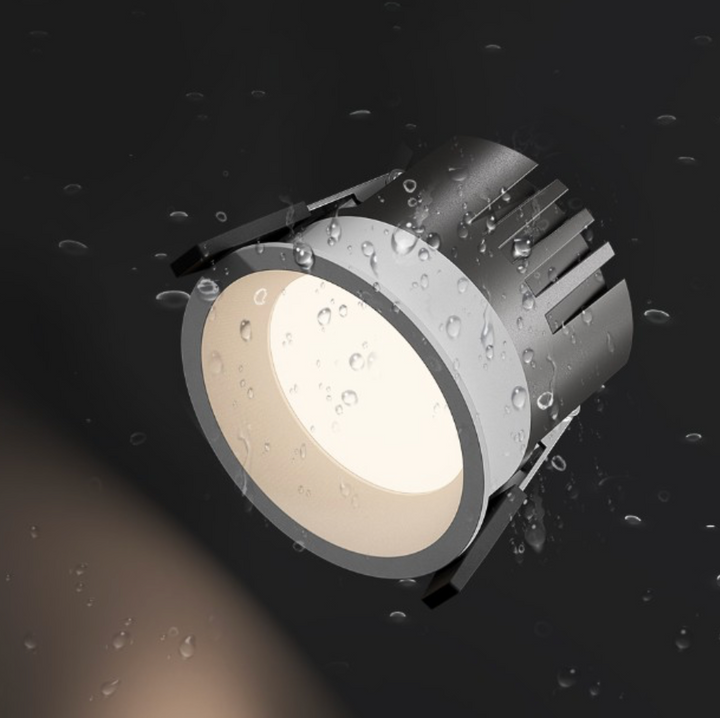

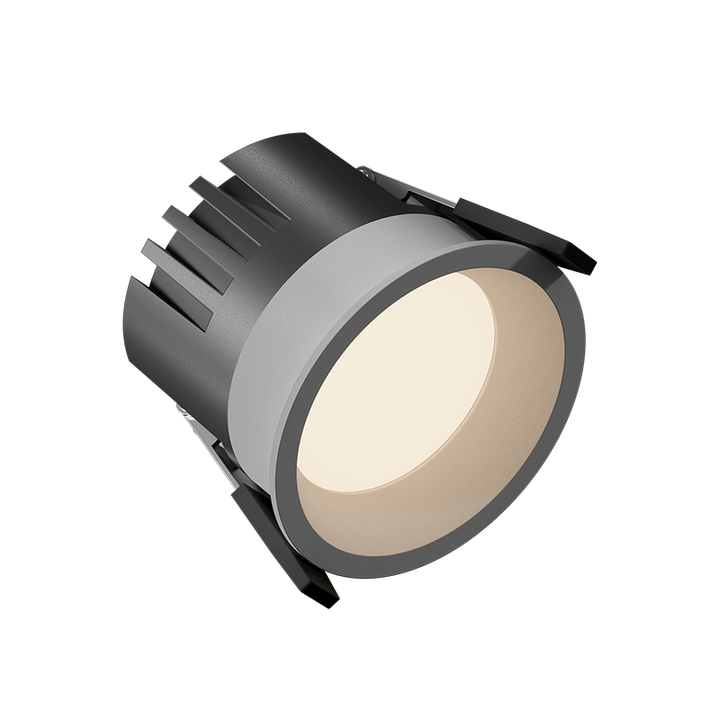

SOPRO Waterproof Downlight S10 (8W)

Power supply: AC220V 50Hz
Size: φ84.5*H64mm
Cut-out size: φ75mm
Luminous flux: ≥450lm
Rated power: 8W
CRI≥90Ra
Color temperature range: 2700K-6000K
Dimming range: 0% ~ 100%
Waterproof grade: IP65
Communication protocol: Zigbee

Reserved plan
1. Reserve 220V power supply zero live wire;
2. The minimum net space of the ceiling is not less than: 110mm
3. Hole size: φ75mm
