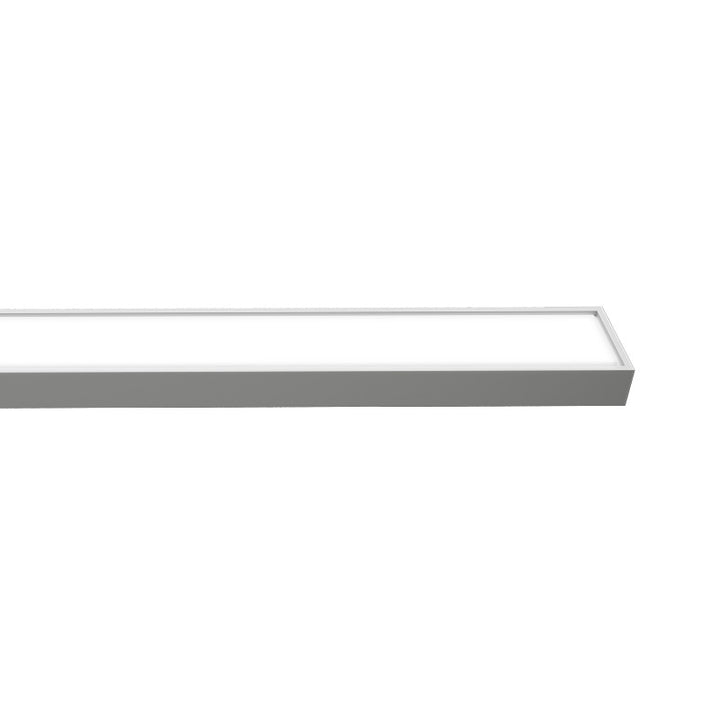

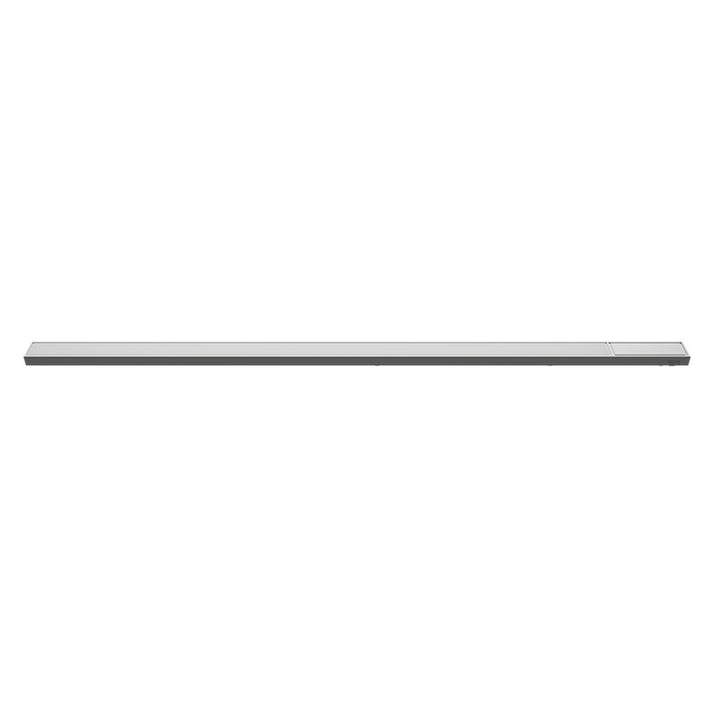

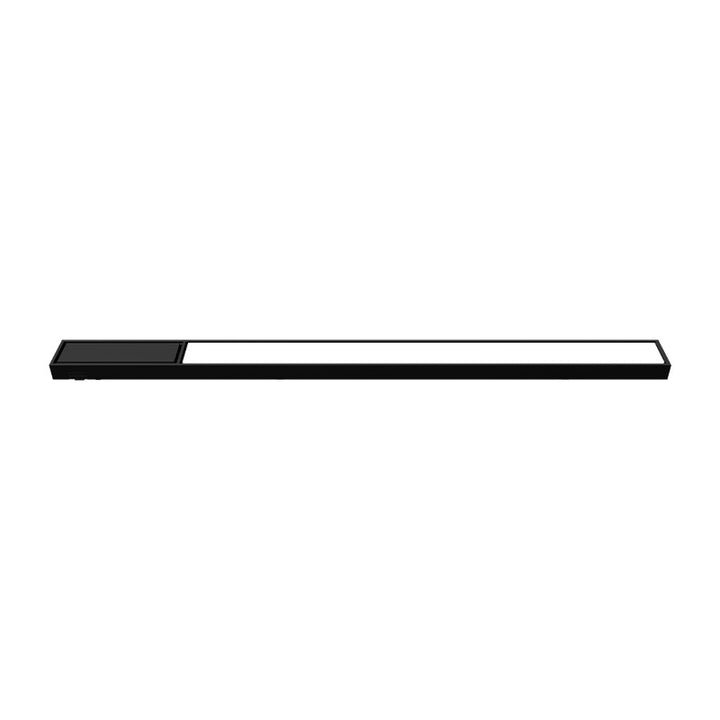

Orvibo Smart Ultra-Thin Surface-Mounted Magnetic Track FloodLight S20 (20W)

Orvibo Smart Ultra-thin Surface-Mounted  Magnetic Track Flood Light

The blade ultra-thin smart magnetic track light integrates the four major technological innovations of "ultra-thin", "anti-glare", "intelligence" and "safety", and achieves extreme beauty in surface-mounted products; Achieved anti-glare eye protection; compatible with 10,000-level dimming and color adjustment and single-light intelligent control; only 6mm track magnetic suction + buckle safety guarantee

Product Specification of Orvibo Ultra-thin Magnetic FloodLight

Power supply: DC48V
Color rendering index: Ra>90
Color temperature range: 2700K~6000K
Beam angle: 110°

Power: 10W
Size: 416*30*12mm
Luminous Flux: ＞600lm

Power: 20W
Size: 739*30*12mm
Luminous Flux: ＞1200lm

Reserved plan
1. Reserve 220V power supply zero live wire;
2. The minimum clear space of the ceiling is not less than: 110mm
3. Hole size: φ75mm

Wiring scheme
1. Reserve 220V power supply zero live wire;
