Lutron RA2 Select RF Relay Module with Softswitch LMM-16R-DV-B
Lutron Singapore RF Relay Module with Soft switch The Lutron RF relay module with Softswitch is a radio frequency (RF) device that uses Lutron patented Softswitch technology to control up to...
Lutron Singapore RF Relay Module with Soft switch
The Lutron RF relay module with Softswitch is a radio frequency (RF) device that uses Lutron patented Softswitch technology to control up to 16 A of general-purpose loads based on input from RA2 Select, RadioRA 2, and HomeWorks systems.
Features of Lutron Singapore RF Relay Module
• Lutron patented Softswitch technology prevents arcing of relay contacts, extending product lifetime.
• Various operating voltages available—refer to Models chart below for details on voltage requirements.
• Capable of switching 16 A of general-purpose loads.
• Utilizes Lutron Clear Connect RF technology—refer to Models chart below for frequency band data and Lutron system compatibility.

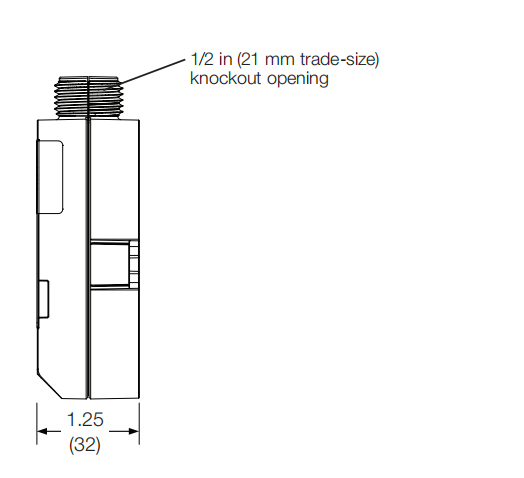

• Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening.
• Complies with requirements for use in a compartment handling environmental air (plenum) per NEC® 2011 300.22(C)(3) (LMJ- model only).
Specifications of Lutron Singapore RF Relay Module
- Model Number: LMM-16R-DV-B
- Operating Voltage: 220–240 V~
- Frequency Band: 868 Limited
- Power : 120/277 V~ 50/60 Hz 16 A 0.5 HP at 120 V~ 1.5 HP at 277 V~ (LMJ- model)
- 220–240 V~ 50/60 Hz 16 A motor: 6 A (LMK-, LMM-, LMN-, LMQ- models)
- Typical Power Consumption : < 1.0 W , Typical power test conditions: all loads off, top LED on
- Regulatory Approvals: UL®, UL 2043 Plenum Rated, FCC Approved. Complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules: CSA, IC, NOM, ANATEL (LMJ- model) CE, TRA, CITC (LMK- model) WPC (LMN- model)
- Environment: Ambient operating temperature: 32 °F to 131 °F (0 °C to 55 °C)
- Ambient operating humidity: 0% to 90% humidity, non-condensing. Indoor use only.
![Lutron RF Relay Module wiring diagram](https://wxalbum-10001658.image.myqcloud.com//wxalbum/1237927/20230811153715/5cfc1ebf1c4e173ed5999a39c36da8e7.png)
![Lutron RF Relay Module communications](https://wxalbum-10001658.image.myqcloud.com//wxalbum/1237927/20230811153715/fc1c9a0c898efc2844cd86b2147ba236.png)

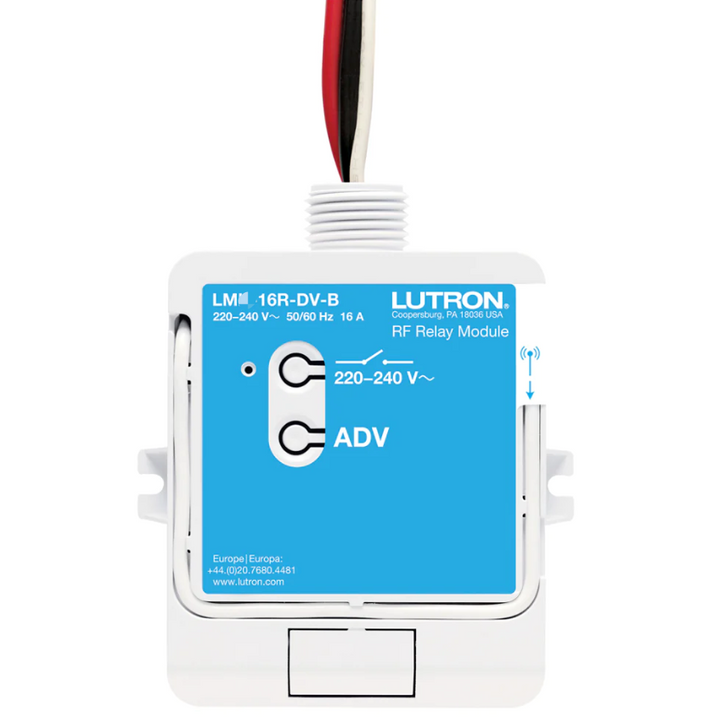

![Lutron LM-16R-DV-B:Lutron Singapore RF Relay Module](http://www.meerkathome.sg/cdn/shop/files/LM-16R-DV-B.png?v=1691744356&width=1)
